General Specs |
Technical Specs |
Safety Specs |
|

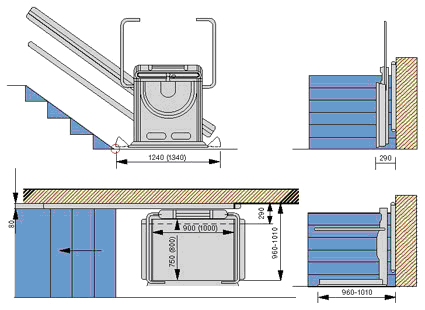

Measures only 29 cm from wall in folded position. |
225 kg safe working load |
Rack and Pinion drive mechanism |
|
CE, TUV and BSI approvals |
Speed 0.11 m/s
|
Low voltage controls 24V |
|
Fully automatic control of all relevant moving parts. |
Drive motor 400 Watts with soft start |
Manual drive operation by handwind (in case no power) |
|
Operation via constant pressure directional buttons and joystick. |
Power supply 380V 3-phase or 230VAC 50 Hz single phase (optional) |
Manual release of barrier arms and platform (in case no power). |
|
Completely removable and easily relocatable. |
Current consumption 2.4 Amp |
Emergency stop button on platform |
|
For indoor as well as outdoor use (fully weatherproof in standard execution) |
Relative humidity 10%-90% |
Key-switched controls on upper and lower landing |
|
Attractive user-friendly design |
Power consumption 0.55 kW |
Thermal overload |
|
Fuses 8 Amp |
Electrical components to IP66 |
|
Total weight approx 220 kg |
Overspeed governor (mechanical droplock) |
|
Pressure sensitive ramps and undertray |
